Fans

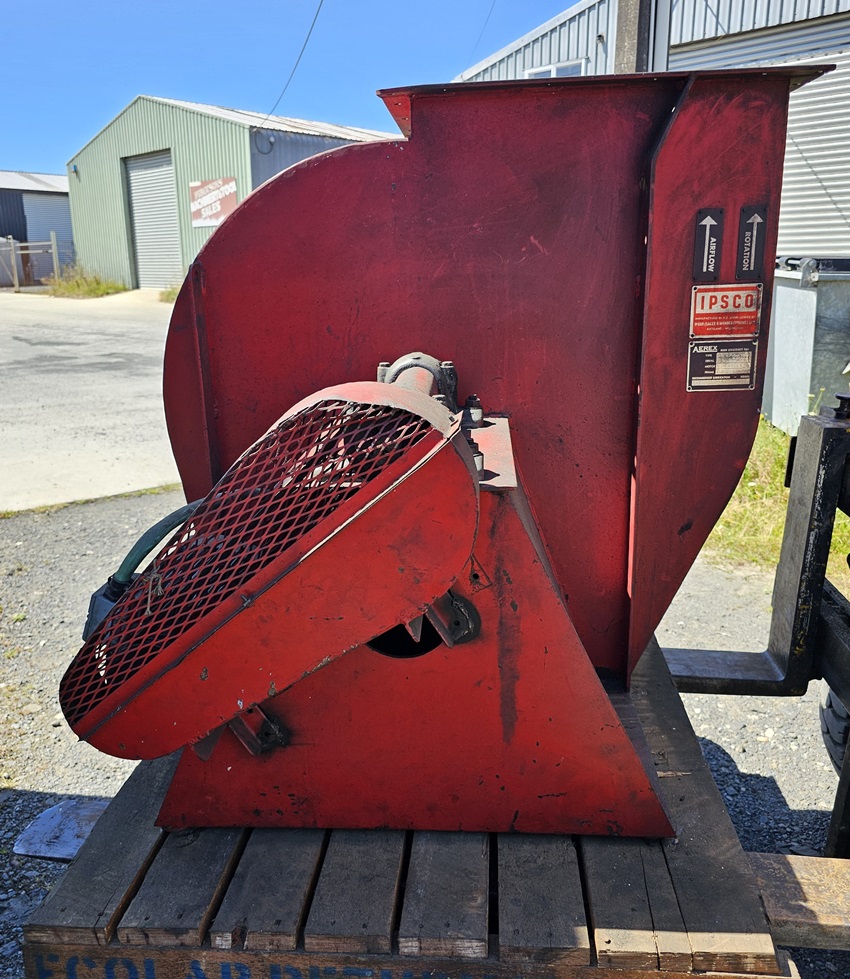

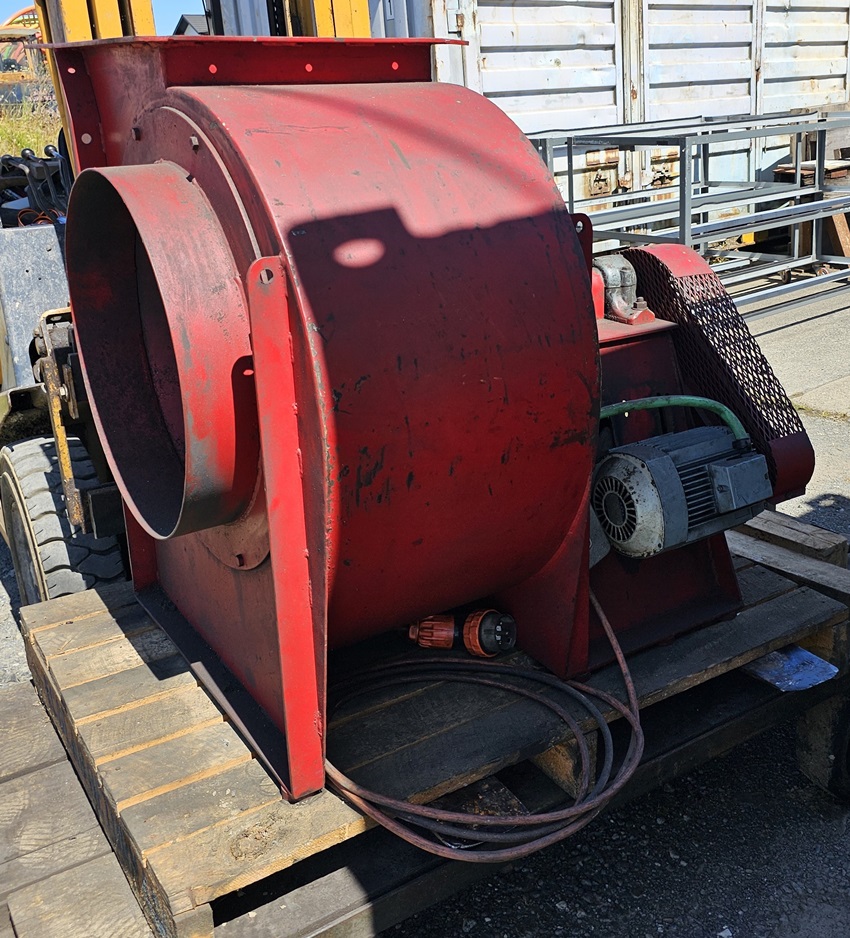

Ipsco Fan

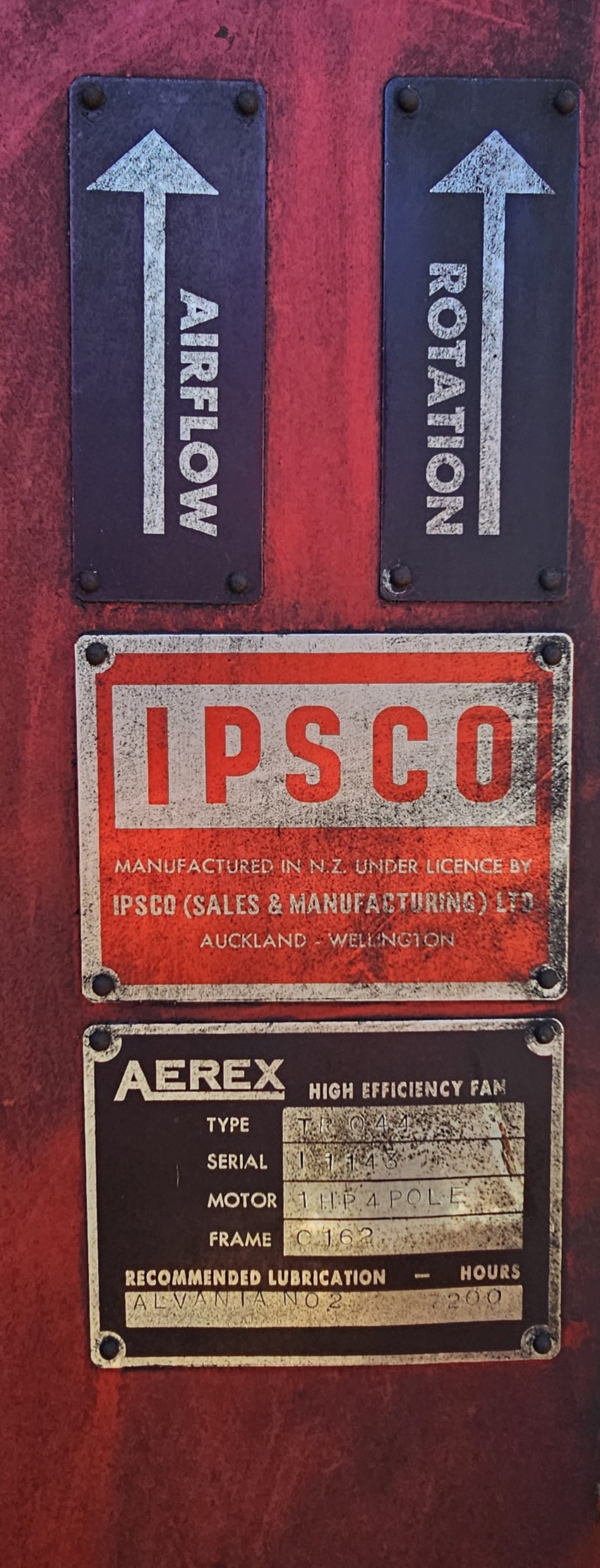

Maker: Ipsco

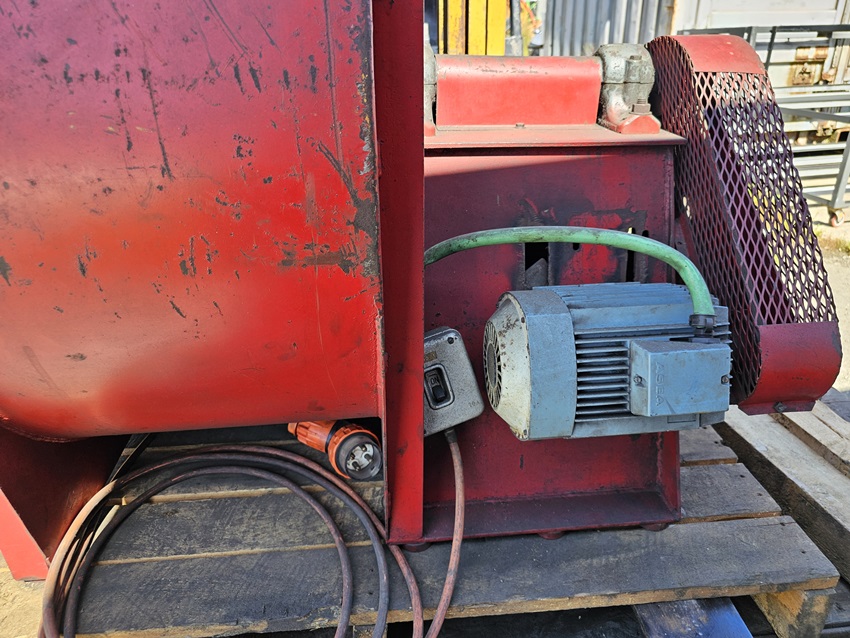

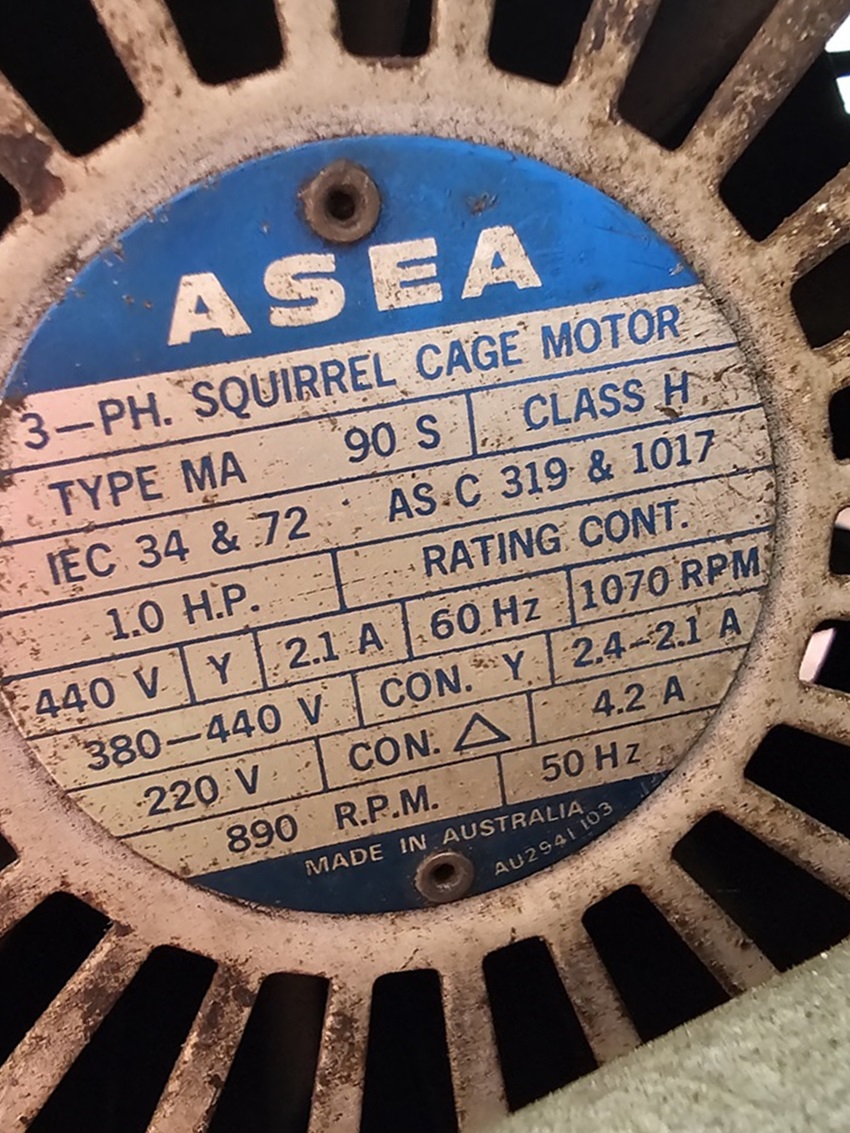

ASEA Squirrel Cage Motor, 3 phase, 1.0 HP, 4 Pole

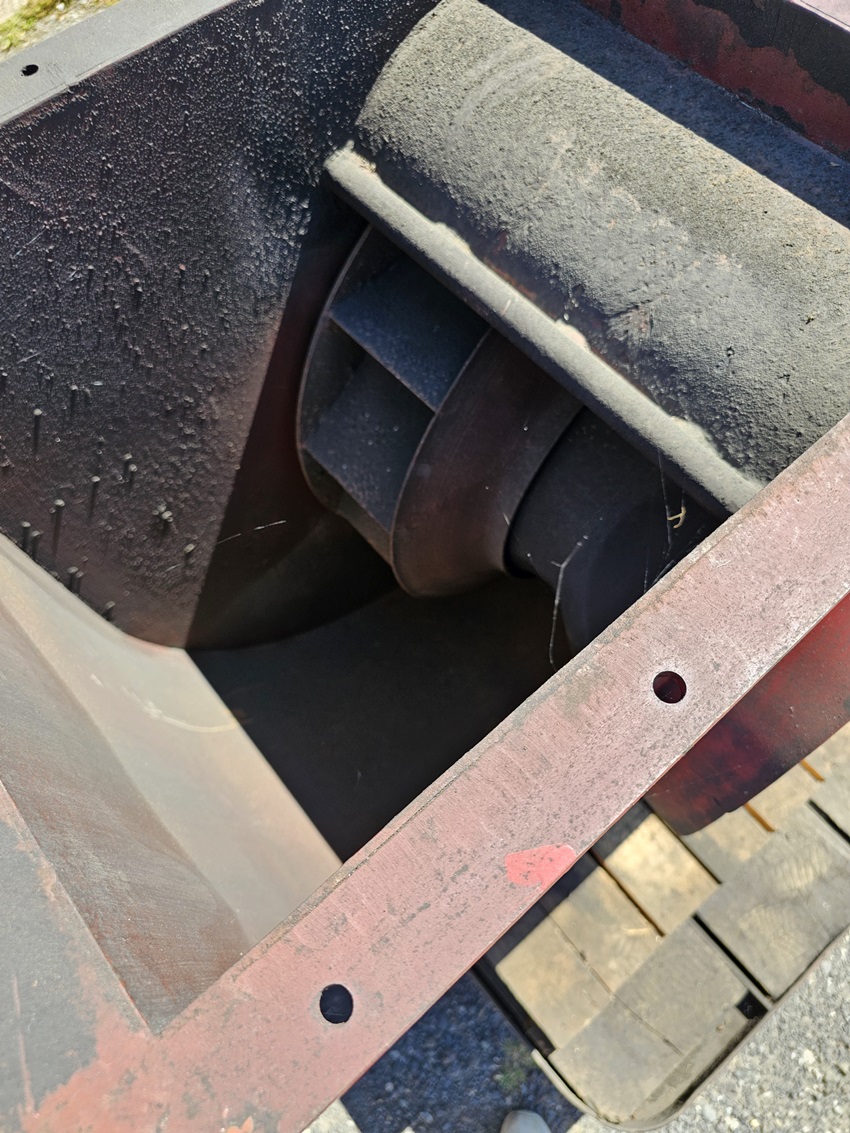

Has a backwards, inclined impeller measuring 510mm.
Used primarily for clean air but suitable for having small amounts of light materials such as wood shavings, non-abrasive dust etc pass through the fan.
Not recommended for any sticky substances to pass through as this could cause imbalance if the material sticks to the blades.
Capable of performance 5000m3/hr-10,000m3/r and up to 250Pa
Measures approx 970 mm high x 970mm deep x 1060mm wide

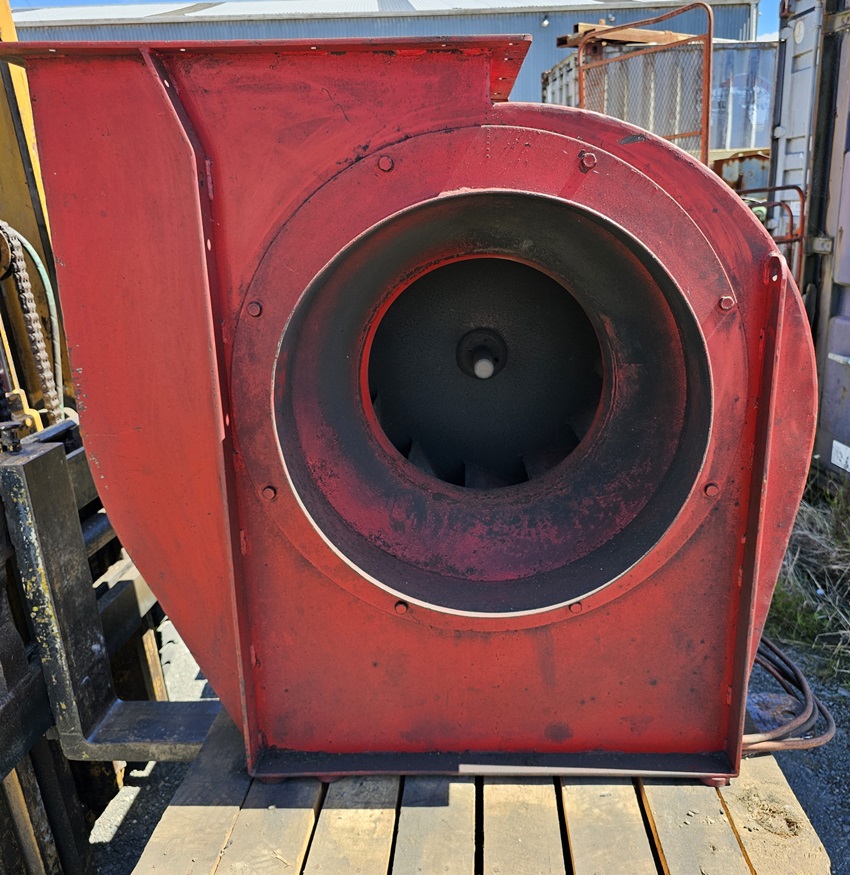

Impeller diameter: 510mm

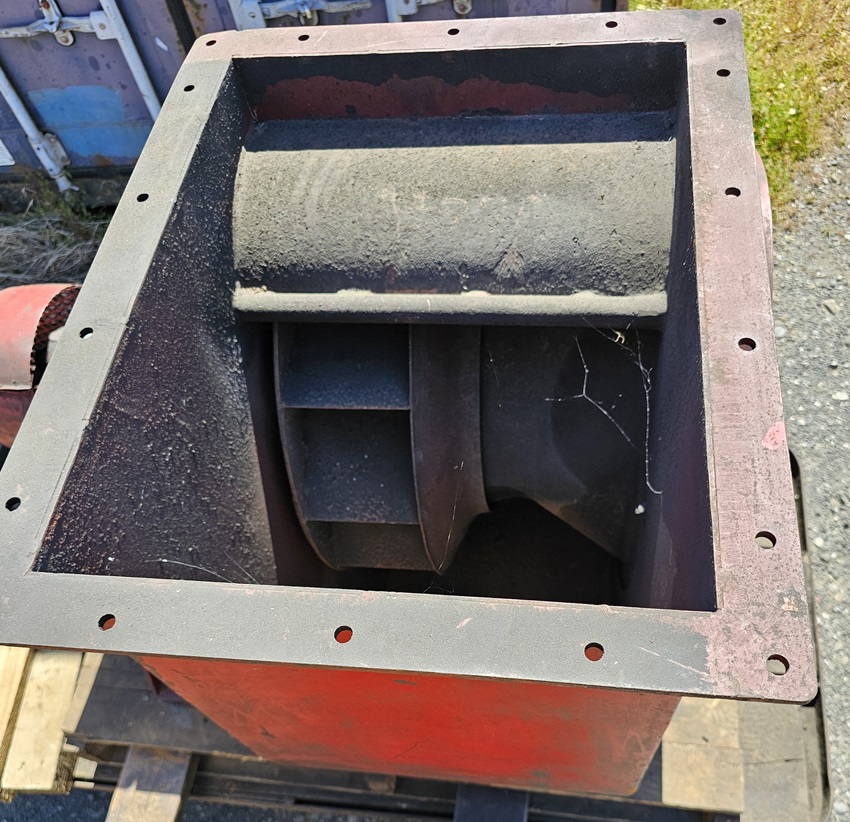

Top opening: 500mm x 625mm
Has a backwards, inclined impeller measuring 510mm.
Used primarily for clean air but suitable for having small amounts of light materials such as wood shavings, non-abrasive dust etc pass through the fan.
Not recommended for any sticky substances to pass through as this could cause imbalance if the material sticks to the blades.
Capable of performance 5000m3/hr-10,000m3/r and up to 250Pa
Measures approx 970 mm high x 970mm deep x 1060mm wide
Impeller diameter: 510mm
Top opening: 500mm x 625mm
Weight: ~ 250kg
Price: $3250.00 + GST - Prices are in $NZ.
